Dura-Flo Carton Flow Product Specifications

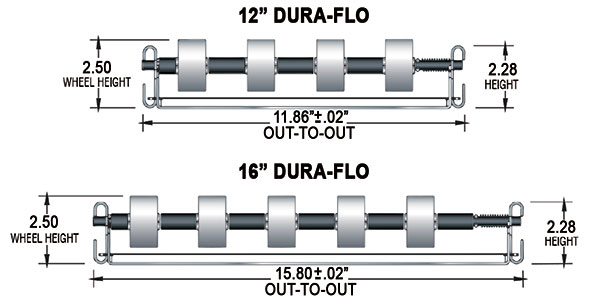

Dura-Flo carton flow is a heavy-duty version of our Dura-Flex carton flow for projects that require more capacity and heavier side channels of 2.28″ high. Out-to-out carton flow track dimensions of 11.86 and 15.80 help create a full bed of rollers for all beam sizes. Dura-Flo is designed to turn any manufacturer’s pallet rack in to a carton flow system.
| Axle Center | Min. Carton Depth |
|---|---|
| 2 inches | 7 inches |
| 3 inches | 10 inches |
| 4 inches | 13 inches |
| Unsupported Span (Inches) | Capacity | |||
| 12″ Width | 16″ Width | |||
| 16 Gauge | 18 Gauge | 16 Gauge | 18 Gauge | |
| 48″ | 164 | 137 | 123 | 102 |
| 60″ | 105 | 87 | 79 | 66 |
| 72″ | 73 | 61 | 55 | 46 |
| 84″ | 53 | 45 | 40 | 33 |
| 96″ | 38 | 32 | 29 | 24 |
| 108″ | 27 | 23 | 20 | 17 |
| 120″ | 20 | 16 | 15 | 12 |
| 132″ | 15 | 12 | 11 | 9 |
